Help with rough-in plumbing (pics!)

Discussion in 'Shower & Bathtub Forum & Blog' started by Stefaan, Jan 8, 2021.

  1. Stefaan

    Stefaan New Member

    Joined:
    Jan 8, 2021
    Location:
    Northeast
    Hi all, looking for some friendly advice here. I am re-doing our bathroom myself and learning as I go. In terms of plumbing we purchased, what I consider, high-end hardware from a company called Watermark through Bender Plumbing. We've just received the rough-ins so I'm starting to plumb/layout the valves as per our design. The layout will be as follows:

    Hot / Tub Spout / Cold / Diverter / Shower wand

    In terms of layout, everything is inline and spaced evenly (~4" apart) to mimic the sink which is the same trim. I may need to increase spacing after my test today, but we'll see. I have no idea how this process usually works and I would love your insight into whether any you think it's strange that neither the manufacturer or Bender supplied me with any information as far as how to mount or plumb any of the valves. Since the valves are all individual, and none of them have flanges for mounting, it's going to take a lot of creativity to have this all look and perform as designed.

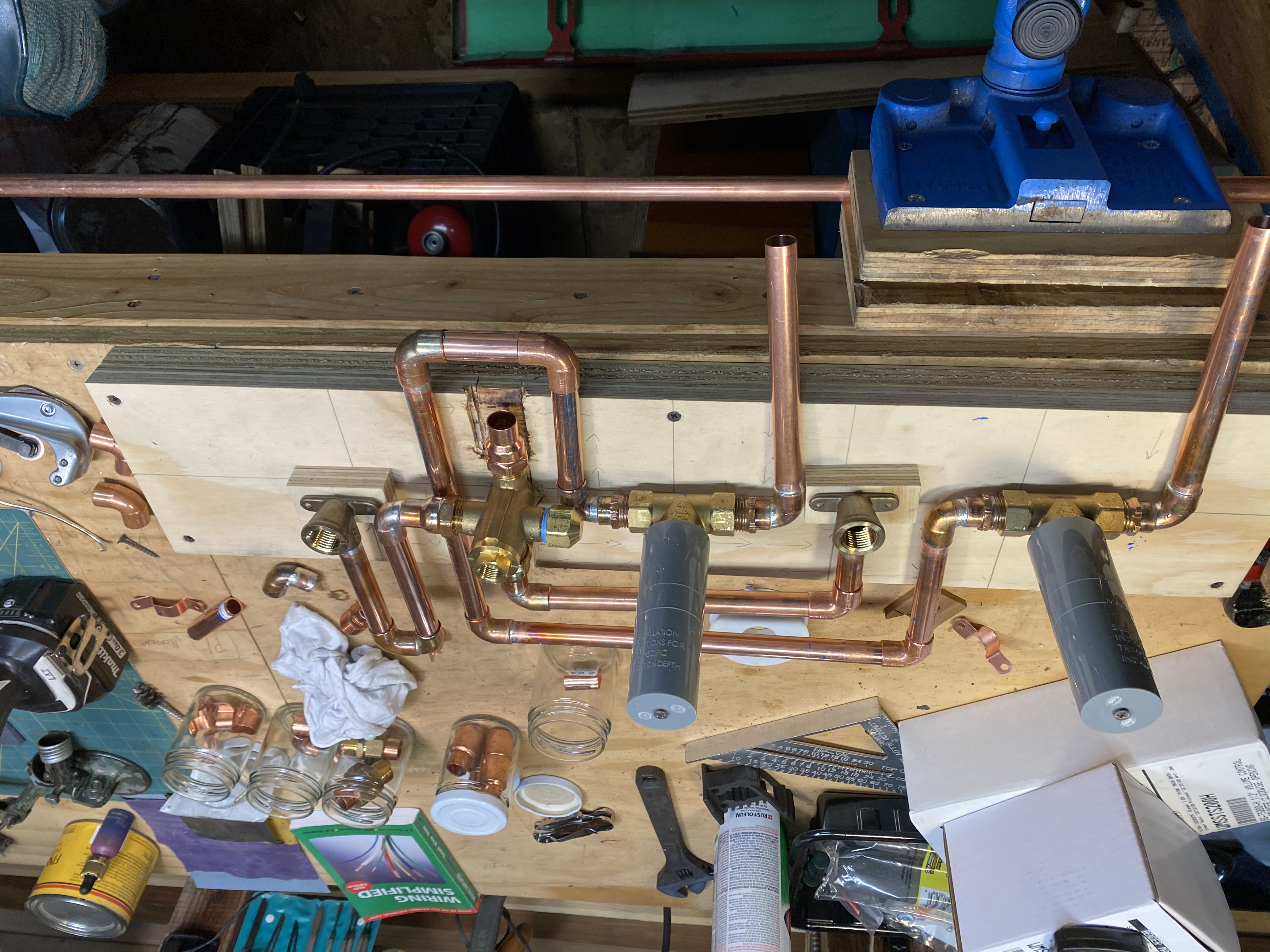

    So here is what I started doing today. I'd love to hear your thoughts, but please don't be too critical, this is rough. I realize that my fitted elbows are a little out of wack so things are not square. I actually really enjoy figuring this out, but I would love input as far as whether I'm over complicating things, or if I'm on the right track.

    Thanks for looking and for any input you may have!
    [​IMG] [​IMG]

  2. WorthFlorida

    WorthFlorida The wife is still training me.

    Joined:
    Oct 28, 2009
    Occupation:
    Retired
    Location:
    Orlando, Florida
    I'm trying to figure out what is what and it's not making sense, at least to me. Is this your template for a final layout. Do the red and blue every connect to something in common? I'm assuming the tub and shower drop ears will be in different location. Exactly what model #? Please names each number and the ? mark.


  3. Sponsor

    Sponsor Paid Advertisement


  4. Stefaan

    Stefaan New Member

    Joined:
    Jan 8, 2021
    Location:
    Northeast
    Thanks so much for getting back to me - making some progress on another thread https://terrylove.com/forums/index.php?threads/help-with-tub-rough-ins-w-pics.91686/#post-660093
